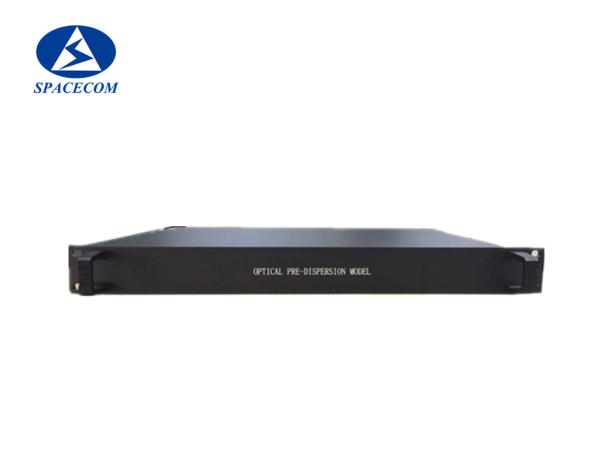

DCM Dispersion Compensator 40km Long Distance Transmission System

    Buy cheap DCM Dispersion Compensator 40km Long Distance Transmission System from wholesalers

    Buy cheap DCM Dispersion Compensator 40km Long Distance Transmission System from wholesalers
    • Buy cheap DCM Dispersion Compensator 40km Long Distance Transmission System from wholesalers

    DCM Dispersion Compensator 40km Long Distance Transmission System

    Ask Lasest Price
    Brand Name : SPACECOM or OEM
    Model Number : SPC-DCM-40
    Certification : CE RoHS FCC
    Price : Get latest price
    Payment Terms : T/T, WU, PayPal, Moneygram, L/C, Western Union
    Supply Ability : 300pcs/month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    DCM Dispersion Compensator 40km Long Distance Transmission System

    40km DCM long-distance transmission system dispersion compensation


    Product Description

    DCM product is specifically designed for correcting dispersion impairments in long-distance transmission system. It is higher performance and lower cost than optical fiber DCM.


    Name:40km DCM long-distance transmission system dispersion compensationModel Number:SPC-DCM-40
    Center wavelength:1550.12nmDispersion Value:-670ps/nm
    Compensation Distance:40KMType:Fiber Identifier
    Connector Type:LC/PC, SC/PC , FC/PCWarranty:1year


    Features

    • The DWDM system wide band dispersion compensation and low residual dispersion;
    • The G.652 fiber C band 100% slope compensation (standard value);
    • The low insertion loss;
    • The low polarization mode dispersion;
    • Telcordia GR-2854-CORE standard certification by the performance index;
    • The reliability of the GR-1221-CORE certification by Telcordia;
    • To provide different packaging styles, types of connectors and jumper length.

    Applications

    • The G.652 standard single-mode fiber long haul and Metro Communication System
    • The DWDM transmission system
    • The SDH transmission system
    • The CATV cable television system
    • The dispersion adjustment

    Specification


    ParametreUnitValue
    mimtypicalmax
    Dispersion Value10KMps/nm-320-318-340
    20KM-336-330-346
    40KM-650-670-690
    60KM-970-1000-1030
    80KM-1300-1340-1380
    100KM-1630-1680-1730
    120KM-1950-2010-2070
    Center wavelengthnm-1550.12-
    Reflection Bandwidth(0.5dB)nm-0.4-
    Insertion loss20KMdB--3.5
    40KM--5.2
    60KM--6.8
    80KM--8
    100KM--9.5
    120KM--11.5
    PMDps--1
    PDLdB--0.5
    Wavelength Stabilitynm--0.07

    Quality control


    More Question


    1. Can I have a sample order?What is your MOQ?

    Yes, we welcome sample order to test and check quality. We do not have MOQ,1 sample is available.


    2. What is the lead time?
    For usual products,We keep stock,could ship about 3 days after received payment.For big quantity and special products,Please check lead time with our sales representative.


    3. How do you ship the goods and how long does it take arrive?
    We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.


    4. What is your payment terms?
    Usually,we need prepayment by T/T,West Union or Paypal.

    Could also support L/C,Credit terms.


    5. What is your warranty time
    We promise 3 years warranty for all products shipped from us.


    6. Could I return the products if there is a quality problem?
    Yes,if there is a quality problem happen,we could accept free exchange.


    7. Could i use our own logo and label?

    Yes,we could provide a OEM service and make the products with your own label.
