    IP67 Waterproof Fiber Optic Connector , Singlemode FTTA Pigtail Jumper Wire

    Ask Lasest Price
    Brand Name : SPACECOM or OEM
    Model Number : Fiber Adapter & Connectors
    Certification : CE,FCC,ROHS,TUV,ISO9001
    Price : Get latest price
    Supply Ability : 20000 Piece/Pieces per Day
    • Product Details
    • Company Profile

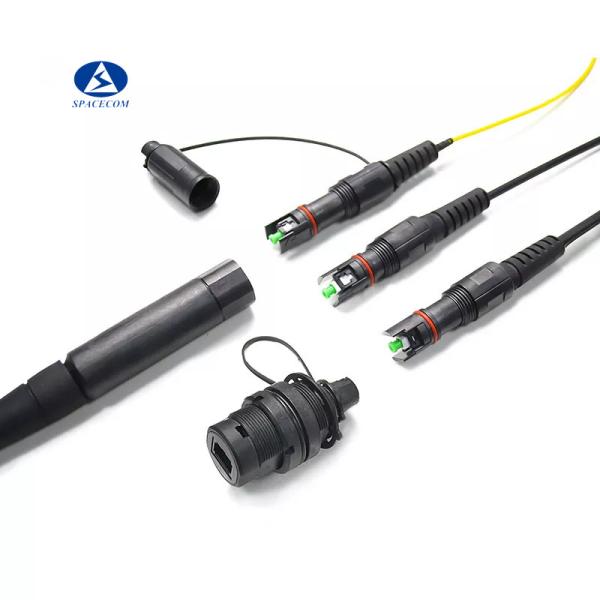

    IP67 Waterproof Fiber Optic Connector , Singlemode FTTA Pigtail Jumper Wire

    Singlemode Jumper Wire Fiber Optical Pigtail FTTA Huawei Mini SC/APC Outdoor IP67 Waterproof Outdoor Drop Cable CPRI Pat


    SPACECOM's H opticassemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The H optic connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the H optic connector provides an ideal solution for direct burial, conduit, or aerial installations.


    Benefits


    Allows flexibility to use factory terminated assemblies Provides superior weather resistance for FTTH and other outdoor applications Ensures functionality in harsh weather environments Can be used with industry standard cable designs Easily installs without special tooling Threaded style coupling Provides bend protection for installation and long term use


    Features


    Single fiber, SC-based connector Bird proof and rodent resistant IP68 water and dust protection Low profile in-line receptacle available No installation tools required 100 minimum mating cycles In-line connection available Operating temperature: -40° to 85°C Cable Diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm 33 lb. axial cable retention (150N)


    Applications


    FTTH Outdoor Areas Harsh Environment


    Type
    SM-UPC
    SM-APC
    MM-UPC
    Typical
    MAX
    Typical
    MAX
    Typical
    MAX
    Insertion loss
    ≤0.1
    ≤0.3dB
    ≤0.15
    ≤0.3dB
    ≤0.05
    ≤0.3dB
    Return loss
    ≥50dB
    ≥30dB
    ≥30dB
    Durability
    500 mating cycles
    Working temperature
    -40 to + 85℃
