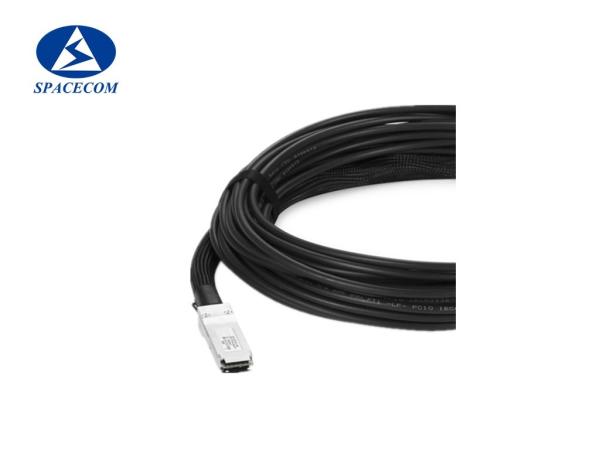

    40G DAC Direct Attach Cable , Commercial 3m Dac Cable High Performance

    40G Direct Attach Copper Cable , Commercial 3m Dac Cable High Performance


    Description


    SPACECOM QSFP+ (Quad Small Form-factor Pluggable Plus) Cable Assemblies are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. QSFP+ cables are used for 40 GbE and Infniband standards, to maximize performance.

    QSFP+ passive cable assemblies are high performance,cost effective I/O solutions for 40G LAN, HPC and SAN applications.

    The QSFP+ passive copper cables are compliant with SFF-8436, QSFP+ MSA and IEEE P802.3ba 40GBASE-CR4. It is offer a low power consumption,short reach intercon- nect applications. The cable each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.


    Product Name:40G DAC CableModel Name:40G-QSFP+-4SFP-DAC
    Cable Lrngth:3 MetersData Rate:40Gbps
    Warranty:1 YearsCable Type:30~24AWG Cable
    DDM:YESWorking Environment:Commercial 0~70℃
    Power Supply:3.3VCompatibility:Multiple brands of switches

    Features

    • QSFP+ conforms to the Small Form Factor SFF-8436
    • 4-Channel Full-Duplex Passive Copper Cable Transceiver
    • Support for multi-gigabit data rates :1 Gb/s - 10 Gb/s (per channel)
    • Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
    • Copper link length up to 5m (passive limiting)
    • High-Density QSFP 38-PIN Connector
    • Power Supply :+3.3V
    • Low power consumption: 0.02 W (typ.)
    • I2C based two-wire serial interface for EEPROM signature which can be customized
    • Temperature Range: 0~ 70 °C

    Applications

    • 40Gigabit Ethernet ( 40G BASE - CR4)
    • InfiniBand-SDR, DDR, QDR
    • Communications: Switches, Routers, and HBA s
    • Networked storage systems
    • Computer cluster cross-connect
