40G QSFP To QSFP Passive Direct Attach Cable 30-26AWG RoHS compliant

    Buy cheap 40G QSFP To QSFP Passive Direct Attach Cable 30-26AWG RoHS compliant from wholesalers

    Buy cheap 40G QSFP To QSFP Passive Direct Attach Cable 30-26AWG RoHS compliant from wholesalers
    • Buy cheap 40G QSFP To QSFP Passive Direct Attach Cable 30-26AWG RoHS compliant from wholesalers

    40G QSFP To QSFP Passive Direct Attach Cable 30-26AWG RoHS compliant

    Ask Lasest Price
    Brand Name : SPACECOM or OEM
    Model Number : 40G-QSFP+-4SFP-DAC
    Certification : CE RoHS FCC
    Price : Get latest price
    Payment Terms : T/T, WU, PayPal, Moneygram, L/C, Western Union
    Supply Ability : 20,000pcs per week
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    40G QSFP To QSFP Passive Direct Attach Cable 30-26AWG RoHS compliant

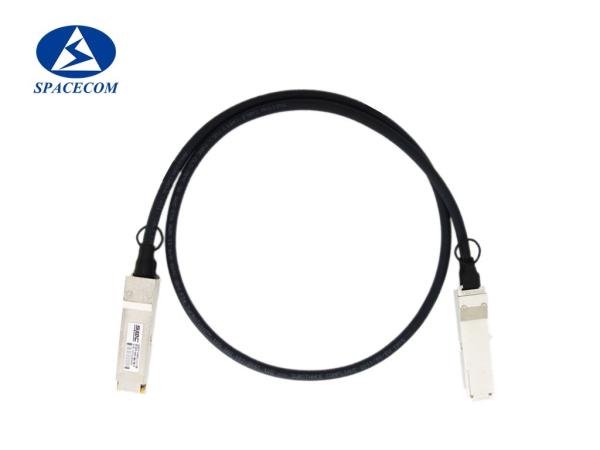

    40G QSFP To QSFP Passive Direct Attach Cable


    Description


    SPACECOM QSFP+ (Quad Small Form-factor Pluggable Plus) copper direct-attach cables are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. These cables are used for 40GbE and Infniband standards, to maximize performance. QSFP+ are designed to meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gb/s. This interconnect system is fully compliant with existing industry standard specifications such as the QSFP MSA and IBTA (InfiniBand Trade Association). The QSFP+ cables support the bandwidth transmission requirements as defined by IEEE 802.3ba (40 Gb/s) and Infiniband QDR ( 4x10 Gb/s per channel) specifications.


    Product Name:40G DAC CableModel Name:40G-QSFP+
    Cable Lrngth:3 MetersData Rate:40Gbps
    Warranty:1 YearsCable Type:30~26AWG Cable
    DDM:YESWorking Environment:Commercial 0~70℃
    Power Supply:3.3VCompatibility:Multiple brands of switches

    Features

    • Compliant QSFP MSA specifications
    • Fully compatible with IEEE802.3ba and Infiniband QDR specifications
    • 40 Gb/s total bandwidth
    • 4 independent duplex channels operating at 10Gbps, also support for 2.5Gbps, 5Gbps data rates
    • 100 ohm differential impedance system
    • Single 3.3V power supply, low power consumption, <1.5W
    • Low Near-End Crosstalk(NEXT)
    • Operating case temperature: -40 to 85°C
    • All-metal housing for superior EMI performance
    • Precision process control for minimization of pair-to-pair skew
    • AC coupling of PECL signals
    • EEPROM for cable signature & system communications
    • 30 AWG to 24 AWG cable sizes available
    • RoHS compliant

    Applications

    • Data
    • Servers
      Networked storage systems
      Routers
      External storage systems
      Data Center networking

    • Communications
    • Switches
      Routers

    • Industry Standards
    • InfiniBand Trade Association (IBTA)
      IEEE802.3ba
      40Gigabit Ethernet ( 40G BASE – CR4)


    Quality control



    More Question


    1. Can I have a sample order?What is your MOQ?

    Yes, we welcome sample order to test and check quality. We do not have MOQ,1 sample is available.


    2. What is the lead time?
    For usual products,We keep stock,could ship about 3 days after received payment.For big quantity and special products,Please check lead time with our sales representative.


    3. How do you ship the goods and how long does it take arrive?
    We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.


    4. What is your payment terms?
    Usually,we need prepayment by T/T,West Union or Paypal.

    Could also support L/C,Credit terms.


    5. What is your warranty time
    We promise 3 years warranty for all products shipped from us.


    6. Could I return the products if there is a quality problem?
    Yes,if there is a quality problem happen,we could accept free exchange.


    7. Could i use our own logo and label?

    Yes,we could provide a OEM service and make the products with your own label.
