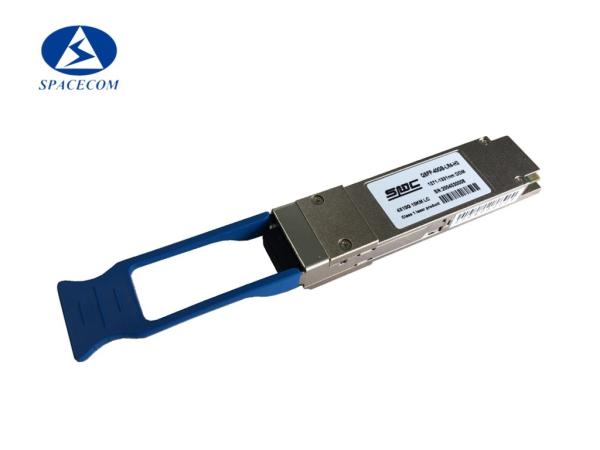

    Optic SFP 40G QSFP LR4 10KM 1271-1331nm 4 CWDM lanes Mux / Demux design

    Ask Lasest Price
    Brand Name : SPACECOM or OEM
    Model Number : SPC-QSFP-40G-LR4
    Certification : CE RoHS FCC
    Price : Get latest price
    Payment Terms : T/T, WU, PayPal, Moneygram, L/C, Western Union
    Supply Ability : 38,000pcs per week
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    Optic SFP 40G QSFP LR4 10KM 1271-1331nm 4 CWDM lanes Mux / Demux design


    Optic SFP Module 40G QSFP LR4 10KM 1271-1331nm for H3C High Speed SFP


    Description


    SPACECOM QSFP 40G LR4 10KM ,The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm.

    It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface.

    Single-mode fiber (SMF) is applied in this module. This product converts the 4-channel 10Gb/s electrical input data into CWDM optical signals (light), by a 4-wavelength Distributed Feedback Laser (DFB) array. The 4 wavelengths are multiplexed into a single 40Gb/s data, propagating out of the transmitter module via the SMF. The receiver module accepts the 40Gb/s optical signals input, and de-multiplexes it into 4 CWDM 10Gb/s channels. Each wavelength light is collected by a discrete photo diode, and then outputted as electric data after amplified by a TIA.


    Product Name:40G QSFP LR4 10KM 1271-1331nmModel Name:QSFP-40G-LR4
    Wavelength:1271-1331nmData Rate:40Gbps
    Transmission Distance:10KmConnector Type:LC
    DDM:YESWorking Environment:Commercial 0~70℃
    Cable Type:SMFCompatibility:Multiple brands of switches

    Features

    • 4 CWDM lanes Mux/Demux design
    • Up to 11.1Gbps Data rate per wavelength
    • Up to 10km transmission on SMF
    • Electrically hot-pluggable
    • Digital Diagnostics Monitoring Interface
    • Compliant with QSFP+ MSA with LC connector
    • Case operating temperature range:0°C to 70°C
    • Power dissipation < 2.5 W

    Applications

    • 40G Ethernet
    • Data Center and LAN

    Standards

    • Compliant to IEEE 802.3ba
    • Compliant to SFF-8436
    • RoHS Compliant.

    Quality control



    More Question


    1. Can I have a sample order?What is your MOQ?

    Yes, we welcome sample order to test and check quality. We do not have MOQ,1 sample is available.


    2. What is the lead time?
    For usual products,We keep stock,could ship about 3 days after received payment.For big quantity and special products,Please check lead time with our sales representative.


    3. How do you ship the goods and how long does it take arrive?
    We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.


    4. What is your payment terms?
    Usually,we need prepayment by T/T,West Union or Paypal.

    Could also support L/C,Credit terms.


    5. What is your warranty time
    We promise 3 years warranty for all products shipped from us.


    6. Could I return the products if there is a quality problem?
    Yes,if there is a quality problem happen,we could accept free exchange.


    7. Could i use our own logo and label?

    Yes,we could provide a OEM service and make the products with your own label.
