Multi power supply Rack Mount Fiber Optical Amplifier 1U DWDM EDFA

    Buy cheap Multi power supply Rack Mount Fiber Optical Amplifier 1U DWDM EDFA from wholesalers

    Buy cheap Multi power supply Rack Mount Fiber Optical Amplifier 1U DWDM EDFA from wholesalers
    • Buy cheap Multi power supply Rack Mount Fiber Optical Amplifier 1U DWDM EDFA from wholesalers

    Multi power supply Rack Mount Fiber Optical Amplifier 1U DWDM EDFA

    Ask Lasest Price
    Brand Name : SPACECOM or OEM
    Model Number : SPC-EDFA-BA
    Certification : CE RoHS FCC
    Price : Get latest price
    Payment Terms : T/T, WU, PayPal, Moneygram, L/C, Western Union
    Supply Ability : 3000pcs/month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

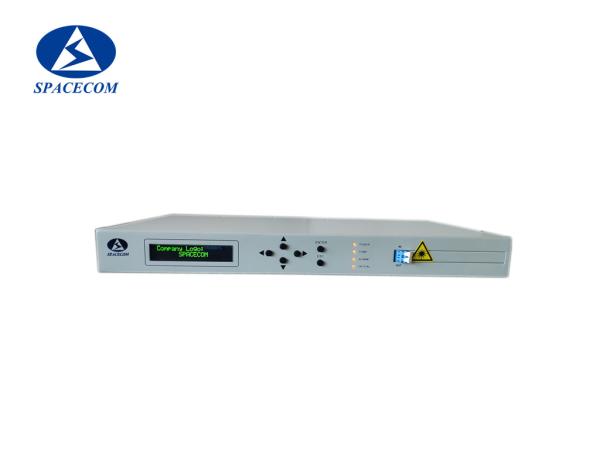

    Multi power supply Rack Mount Fiber Optical Amplifier 1U DWDM EDFA

    1U DWDM Optical Amplifier BA EDFA


    Description

    SPC-EDFA-BA is mainly used in BA-1550-series 1550nm optical fiber amplifier 1550 important optical relay transmission in optical fiber communication system equipment, mainly for image signal, digital TV signal, telephone voice signals and data (or compressed data) ultra long haul transmission of signals. The product selection of imported high-performance baits fiber, the international famous brand low-noise pump laser, and built-in sound embedded automatic monitoring and control system, ensure the machine excellent performance indicators.


    Features

    • High output power
    • Output power tunable
    • Low NF
    • RS-485,RS-232 network interfac
    • Multi power supply (Rack Mount);
    • AC:220V-110VDC:-48V

    Applications

    • Access network
    • IP ATM SDH Network
    • Digital communication network
    • DWDM system

    Product Specification

    Product NamePower amplifier(BA)
    ParameterMinTypMaxUnit
    Operating Wavelength16 Channel154615501561nm
    32 Channel15351562
    48 Channel15281568
    Input power-106dBm
    Gain142533dB
    Output power21dBm
    Noise figure5.0dB
    Input/output Isolation30dB
    Output Pump leakage-30dBm
    Input/output return loss45dB
    polarization dependent loss0.5dB
    Polarization mode dispersion0.5ps
    Operating Temperature-555
    Humidity595%
    Storage Temperature-4085
    power consumption30W
    Power-48V DC or 220V ACV
    InterfaceFC/UP or others

    Quality control


    More Question


    1. Can I have a sample order?What is your MOQ?

    Yes, we welcome sample order to test and check quality. We do not have MOQ,1 sample is available.


    2. What is the lead time?
    For usual products,We keep stock,could ship about 3 days after received payment.For big quantity and special products,Please check lead time with our sales representative.


    3. How do you ship the goods and how long does it take arrive?
    We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.


    4. What is your payment terms?
    Usually,we need prepayment by T/T,West Union or Paypal.

    Could also support L/C,Credit terms.


    5. What is your warranty time
    We promise 3 years warranty for all products shipped from us.


    6. Could I return the products if there is a quality problem?
    Yes,if there is a quality problem happen,we could accept free exchange.


    7. Could i use our own logo and label?

    Yes,we could provide a OEM service and make the products with your own label.
